Airplanes and babies

This picture summaries the reason why I haven’t had the time to write here in a long time. We had a baby, Hillevi in Januari. We moved to Sunne in April and now working on a new place called Note and trying to get things going at our new place. I finally joined the lokal flight club and got to fly for a couple of hours this weekend. We spent the day at the very nice flight club in Sunne, It was a happy day for me to be able to do what I love the most with the people I love the most.

We met a nice lady at the airport shooting pictures of airplanes. I asked if she could take some pictures of us and my Avid Flyer.

Christmas uppdate

Ok so let’s do some simple uppdate on the Youngster project. Just by posting pictures.

Important reinforcement

The elevator on the Tierra2, T-bird2 and Akka needs to be reinforced! I know of two cases when the bolts have snapped. One pilot was killed.

Building ailerons

Building the second aileron today. It’s just like building a model airplane wing.

This is going to dry up for a couple of days now before i start on the hinges.

Aileron leading edge

Glued the leading edge today when the PU-varnish had cured. I use tape and staples to hold it together while curing. Off course I have to remove them again, but that is a small issue.

img_20170120_154654

img_20170120_163457

Aileron work continues

I masked the gluing area before I varnished the inside of the plywood sheet.i use just a thin layer to save weight. Next time I will glue the sheet completely to the aileron.

I had some varnish over, so I painted the instrument panel some more.

Aileron work

Working on the ailerons. It’s like building a giant scale RC-plane. These ailerons are quite heavy duty I must say. I understand that they need to be extra strong and stable, because there are only ailerons on the lower wing.

I got a nice little band saw for Christmas present from my wonderful wife. So cutting up all the sticks was easy. Gluing with T88 epoxy and clamping with small plastic clamps.

The rod and hinge. I will use ball bearings instead of lexan bushings.

The leading edge is going to be covered with plywood. I painted varnish on the inside before covering. All surfaces to be glued was sanded before.

Using aircraft plywood from Finland.

The plywood is glued at one edge as a first step. I make two test samples for each glue batch. (One test sample is laying on top of the plywood).

Crankshaft work

Went to the machine shop today and got the prop hub and cam gear off the crankshaft. I turned a ring to fit behind the cam gear to be able to use the hydraulic press.

Important to protect the bearing surface from the snap ring.

Preparing the VW Aero engine

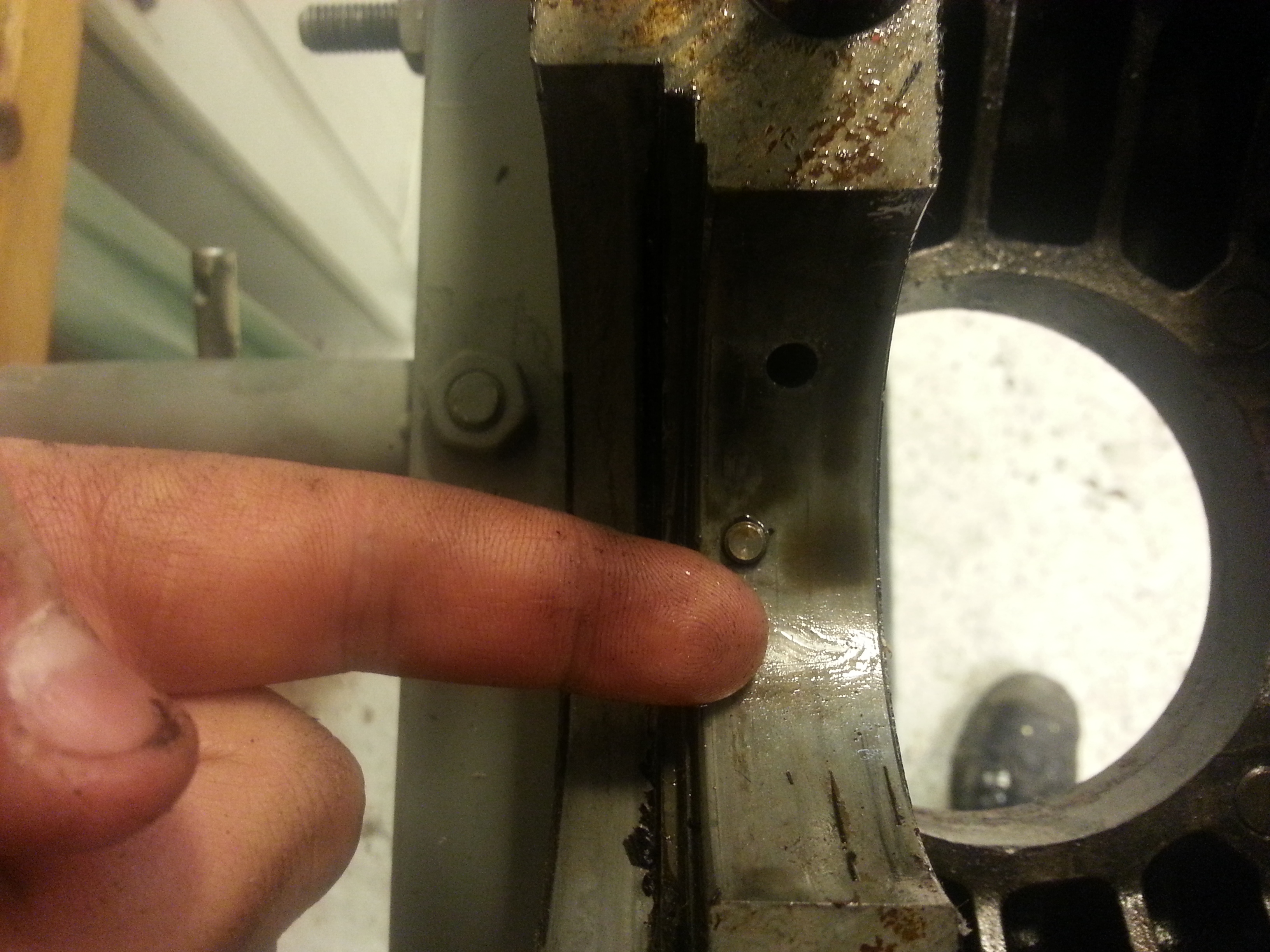

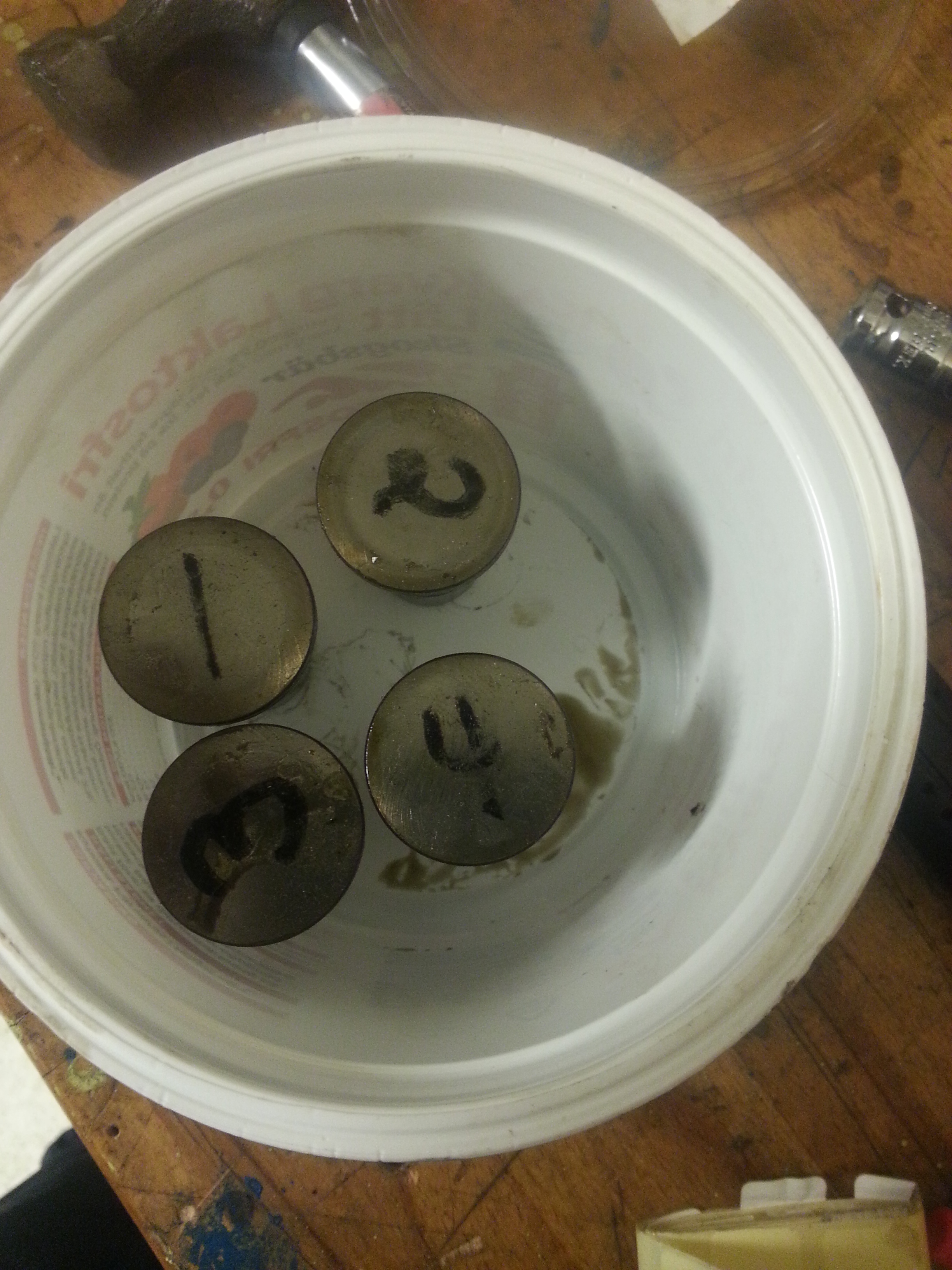

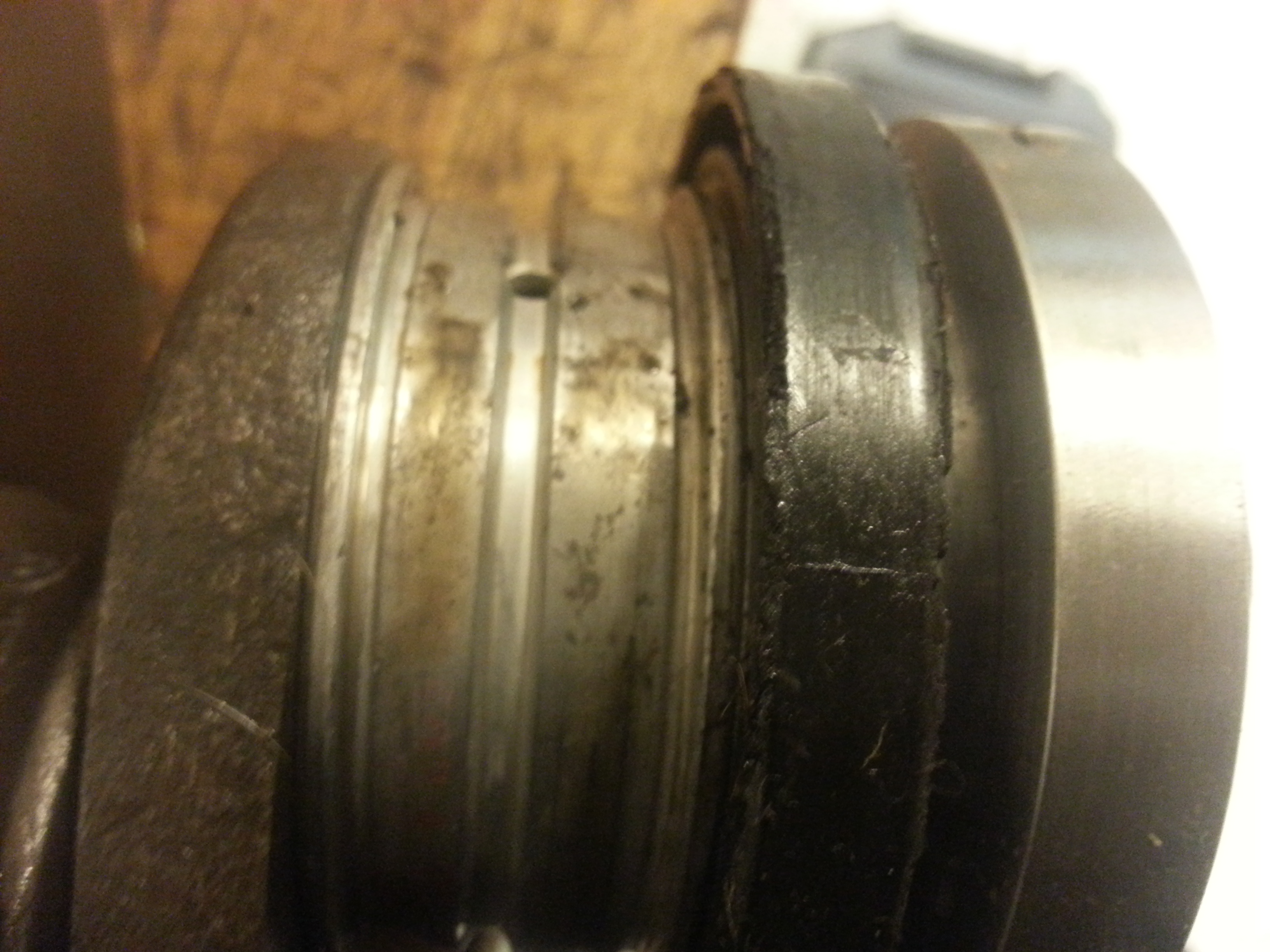

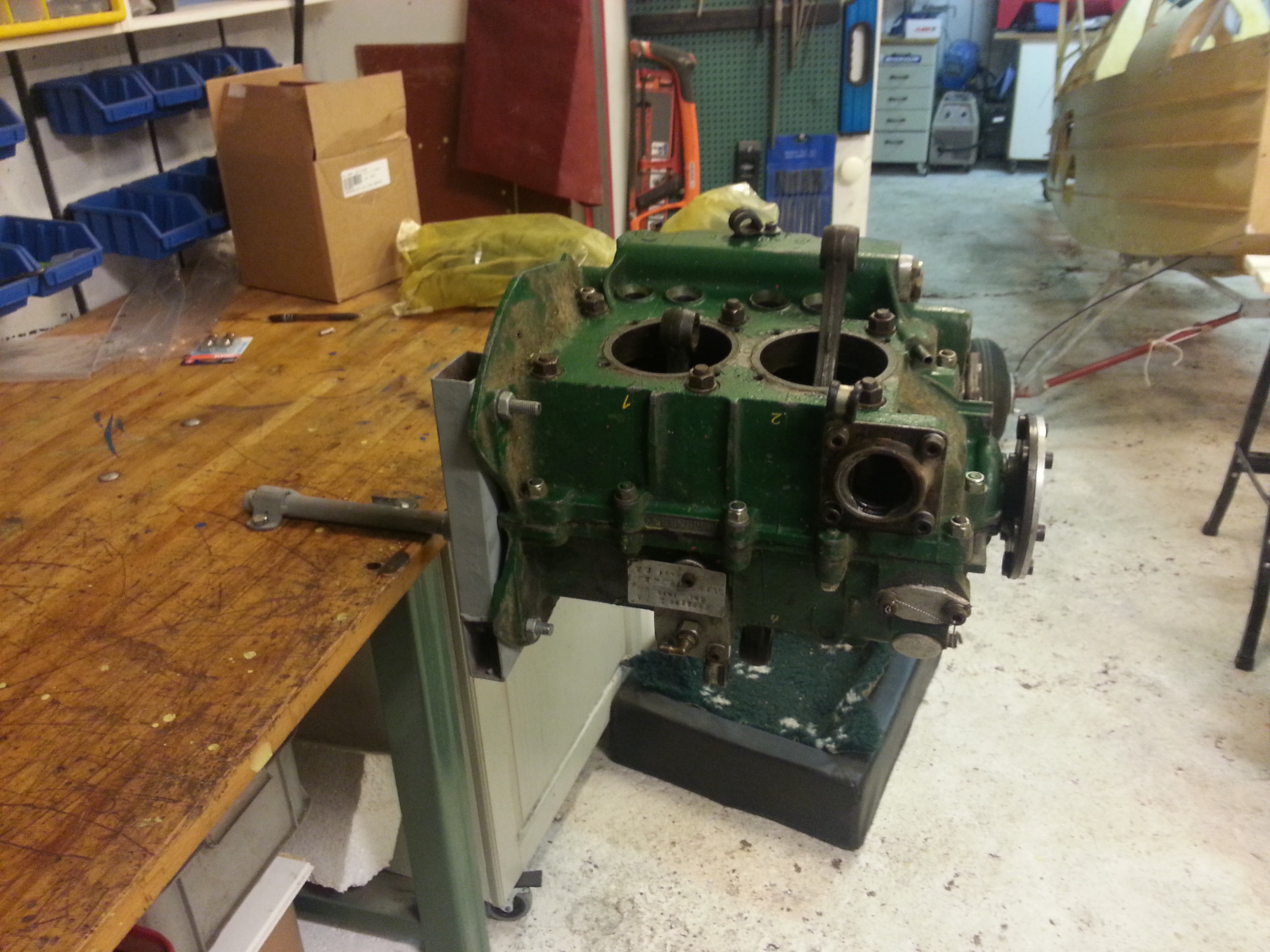

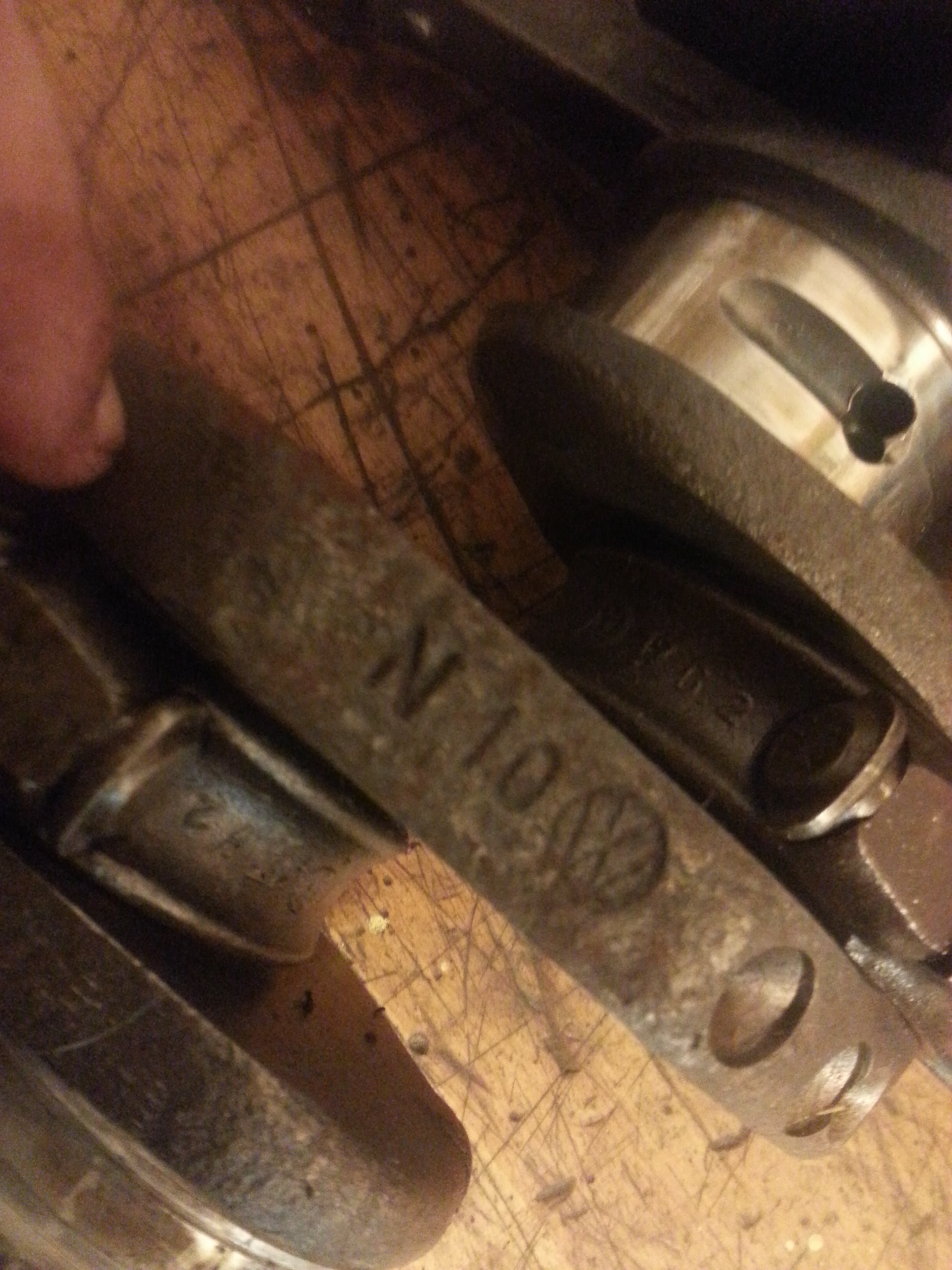

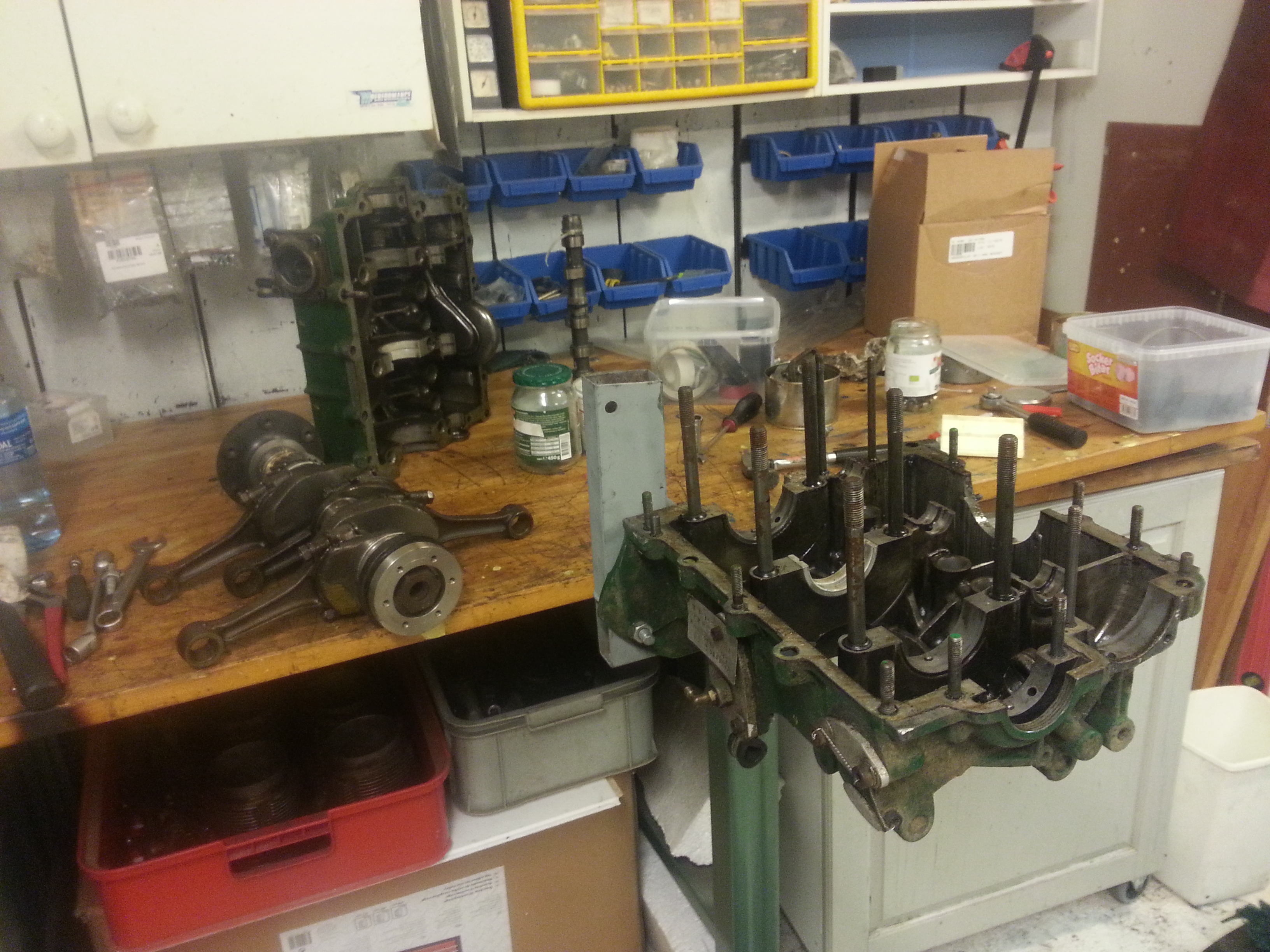

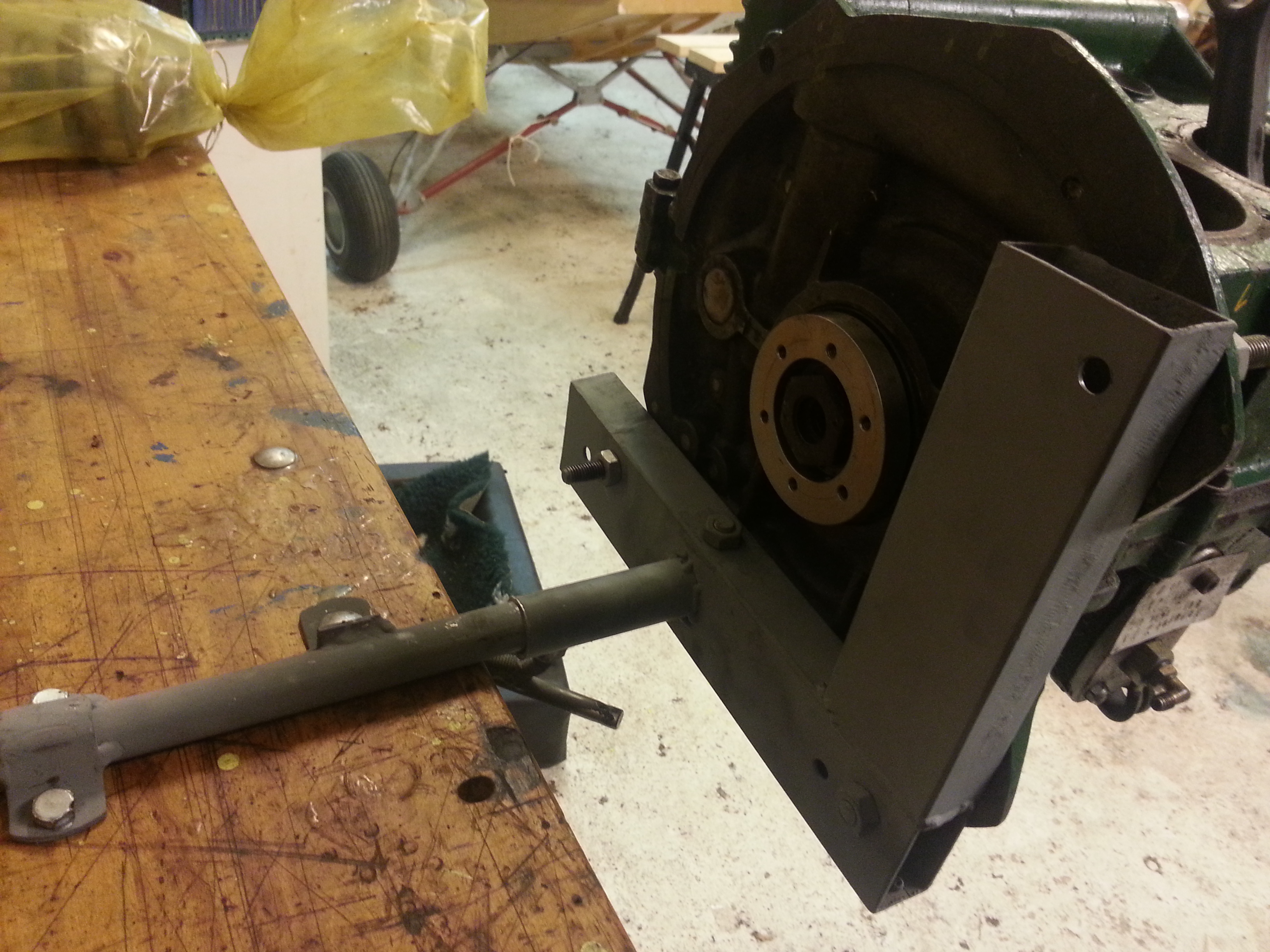

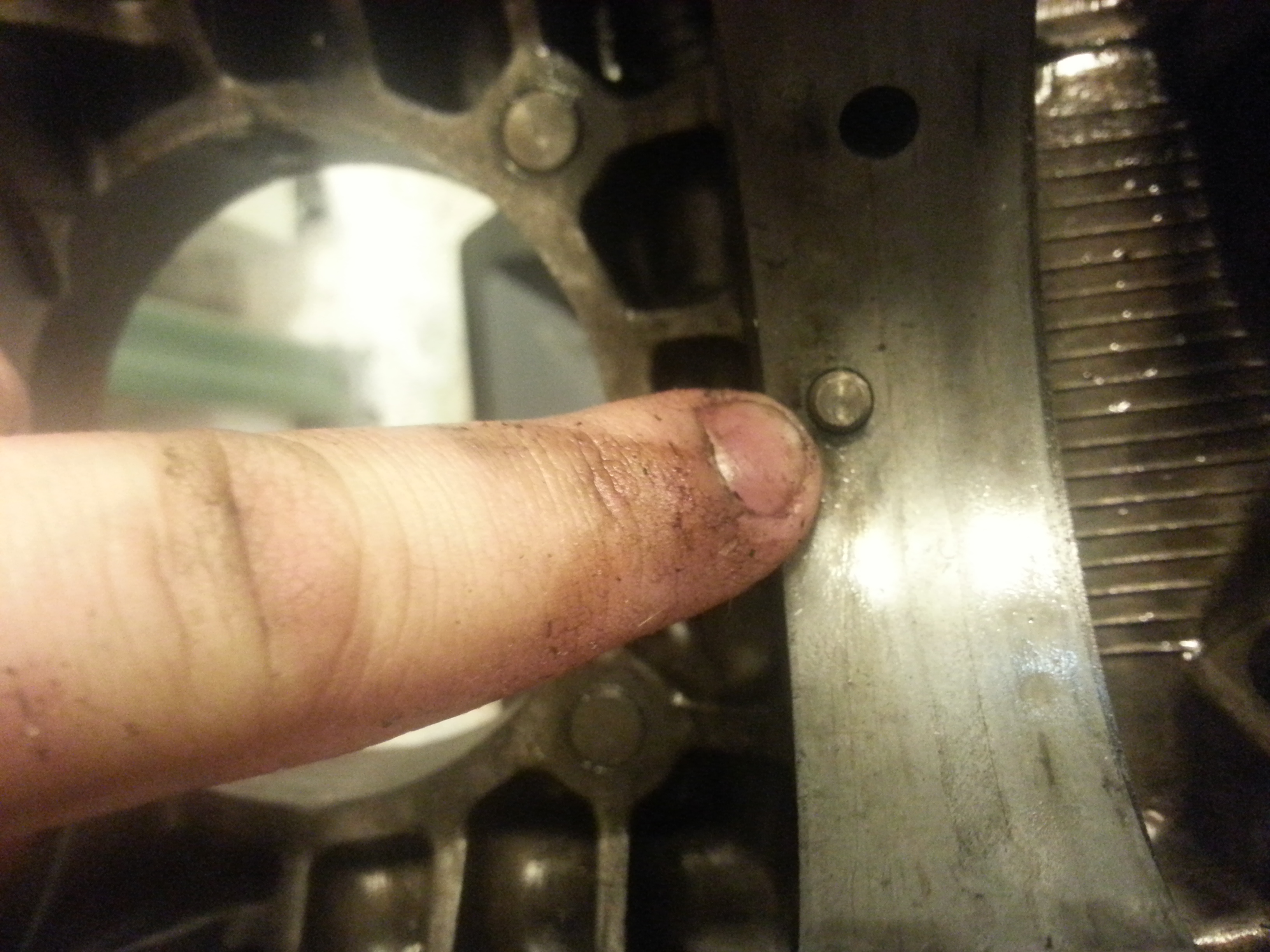

Today I started tearing down the engine I bought. It has only 150 flying hours but it has not been touched sinse 1986. Still there was no corrosion or rust at all. The owner has had the engine conserved and stored in a dry place all the time. It is an Danish 1600cc aeroconversion engine. So what I will do is to take it all apart, send the crankshaft to magnaflux inspection, have all the parts measured and ballanced, hace the case modified to fit 1834cc barrels and build it as an 1834cc engine.

I am going to visit the inventor club www.blekingeuppfinnare.se I am a member of to loan the hydraulic press there, so I can get the prop hub and camgear off the crankshaft.

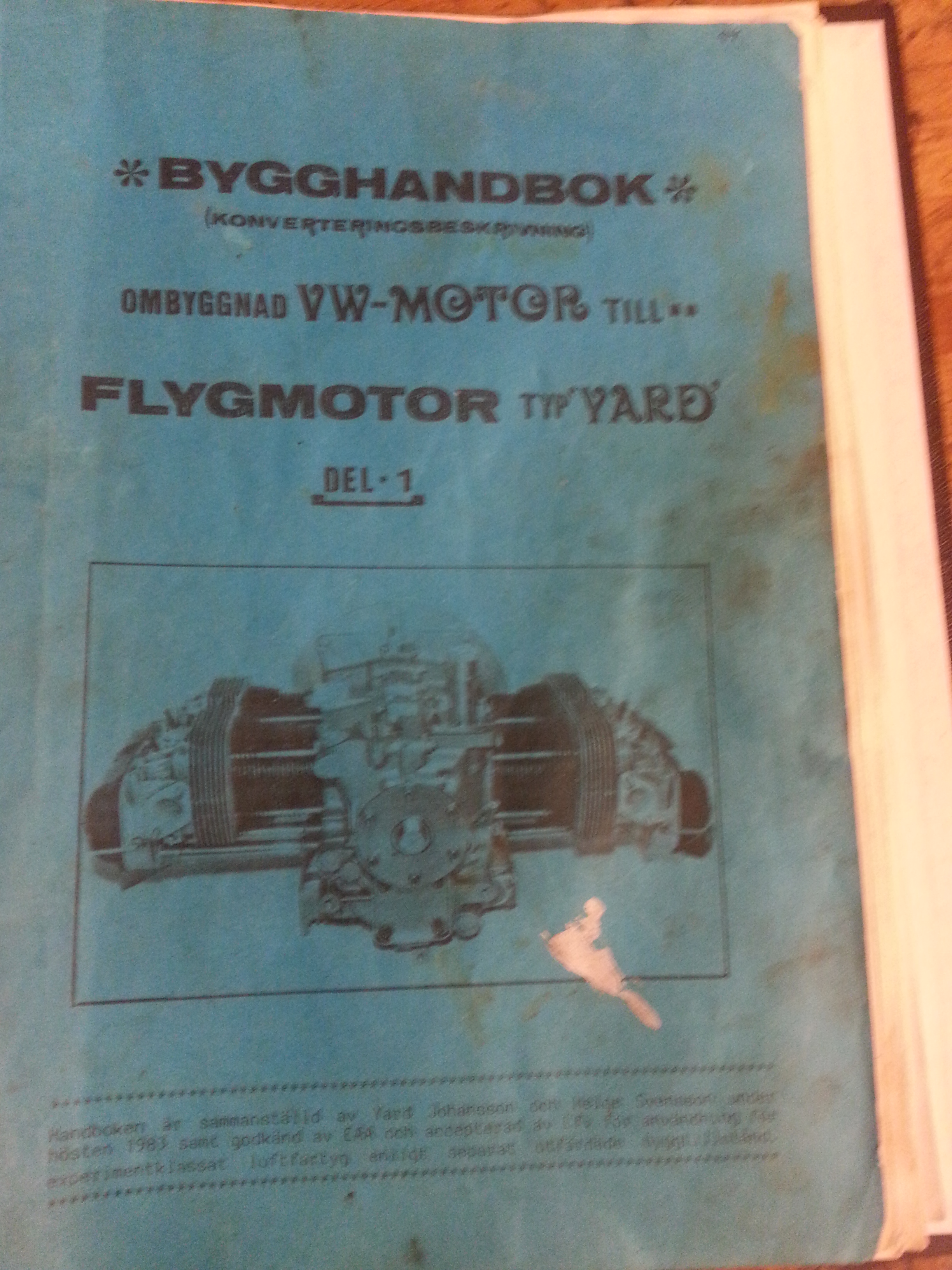

I will use the Swedish EAA aprooved manual to build the engine.
